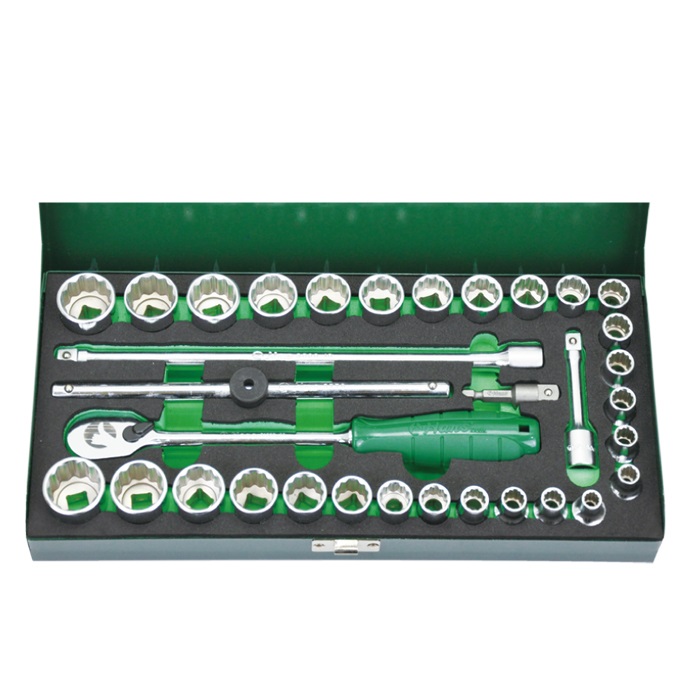

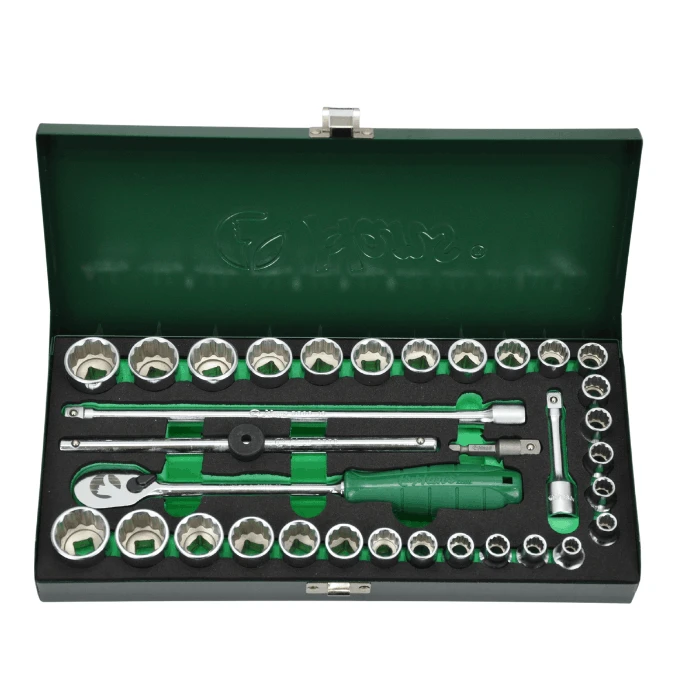

3633-2M Socket Wrench Set- 3⁄8″ Drive- 33 PCs
3633-2M: 3⁄8″ Drive 33-Piece Metric & SAE 12-Point Socket Wrench Set
- Coffret douilles outillés
- Zestaw kluczy nasadowych
- Steckschlüssel-Satz
- Juego de llaves vaso
- مجموعة وجع المقبس
- ชุดประแจบ๊อกซ์
- 套筒扳手組
- Steel Material Case
- Item number + (-2) which means 12 Points Socket
- Ratchet Handle chosen by G type Ratchet Handle (Handle Information)
Socket Wrench Set (Model 3633-2M Professional Industrial Series) is a master 33-piece 3/8″ square drive manual fastening ensemble engineered for high-precision mechanical assemblies, automotive maintenance loops, and industrial MRO
| 33PCS | 3633-2M |
|---|---|
| 3402M | HAND SOCKET 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22mm 16PCS |
| 3402A | HAND SOCKET 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8 12PCS |
| 3100G-90 | No-Push Button RATCHET HANDLE 240mm/ 9-⁷ᐟ₁₆" |
| 3800-3, -10 | EXTENSION BAR 75mm/ 3" 250mm/ 10" |
| 3770 | SLIDING "T" HANDLE 200mm/ 8" |
| 04663B | HEXAGON SHANK PIN TYPE ADAPTOR |
METAL CASE : 315x145x45mm, GW=14.5KGS/ 6SETS  =0.48' |
|
Feature
Elite G-Type 90-Teeth No-Push-Button Ratchet Handle
The center piece of the 3633-2M kit is the elite G-Type 90-Teeth Manual Ratchet Handle, built specifically to solve clearance bottlenecks in tightly packed workspaces:
- Ultra-Precise 4-Degree Gear Arc Swing: Equipped with a 90-tooth internal gear mechanism that provides a micro-fine 4° engagement arc. This allows technicians to smoothly turn fasteners in tight modern engine bays, machinery brackets, and behind dashboards where a standard 36 or 72-teeth ratchet lacks the room to click and lock.
- Solid-Core No-Push-Button Head Design: Devoid of a quick-release push button to ensure maximum structural integrity. Removing the push-button pin channel allows the ratchet head to remain completely solid, providing an uninterrupted surface area behind the dual-pawl gear system. This low-profile head design significantly increases the tool’s absolute breaking torque threshold while allowing it to slip easily into cramped gaps.
- Secure Ball-Detent Friction Latching: Sockets are retained via a high-tension spring-loaded steel detent ball on the 3/8″ drive anvil. This setup holds the socket locked during heavy lateral pulling forces while allowing clean, greasy-handed manual swap-outs when pulled straight off the drive hub.
Advanced Two-Piece Layout & Patented An-Lock Drive® Protection
- Drop-Forged Chrome Vanadium Steel (Cr-V): Every socket and structural accessory is hot drop-forged from premium Chrome Vanadium alloy steel and deep oil-quenched. This delivers immense yield strength, protecting the 12-point walls from splitting or deforming under high break-away leverage.
- Patented An-Lock Drive® Geometry: The internal 12-point layout features radiused drive walls that move the point of contact away from the soft corners of a metric hex nut. By shifting the force to the wide, flat faces of the fastener head, this system increases torque capacity by up to 25% while completely preventing head stripping.
- Signature Split Dual Finish: Sockets feature a high-luster mirror-chrome upper section that easily sheds grease and oils, combined with a texturized satin-matte lower collar band for a secure, slip-resistant grip when finger-spinning fasteners down.
