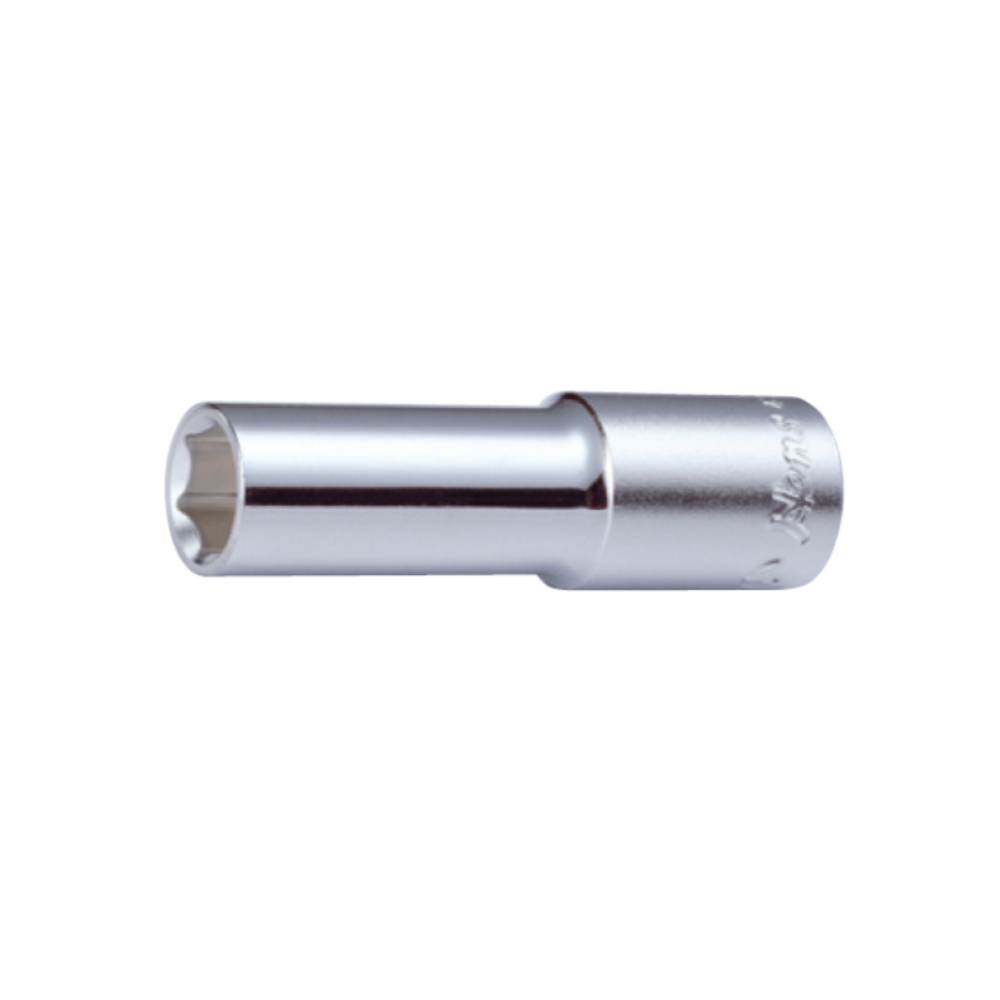

3300M/A ⅜” Deep Socket Manual 6-Point | Cr-V

SKU 3300M/A Categories Socket, Socket /Impact Socket / Socket Wrench Set, Socket-3⁄8"DR. Tags 3⁄8""DR, 6Pt, Deep Socket, Hand Socket

3300M (mm)	3300A (inch)	D1 mm	D2 mm	L mm	g	pcs
6	¼	10	17	63	40	10
7		10.6	17	63	40	10
8	⁵ᐟ₁₆	12	17	63	40	10
9		13	17	63	40	10
	⅜	14	17	63	60	10
10		14.5	17	63	60	10
11	⁷ᐟ₁₆	16	17	63	60	10
12		17	18	63	60	10
13	½	18	17	63	60	10
14	⁹ᐟ₁₆	20	18	63	80	10
15		22	20	63	100	10
16	⅝	22	20	63	100	10
17	¹¹ᐟ₁₆	24	22	63	100	10
18		24	22	63	100	10
19	¾	26	24	63	110	10
20		28	26	63	150	10
21	¹³ᐟ₁₆	28	26	63	150	10
22	⅞	30	27	63	160	10
23		31	27	63	185	10
24	¹⁵ᐟ₁₆	32	28	63	190	10
	1"	32	28	63	190	10

Material Engineering & Structural Truth

High-Mass 6-Point Single-Hex Matrix: The choice of a 6-point geometry over a 12-point pattern ensures maximum wall contact area on standard hex fasteners. With thick wall flanks, the socket provides exceptional structural resistance against outer wall expansion when a technician applies heavy manual leverage to frozen hardware.
Proprietary An-Lock Drive® Geometry: The internal 6-point broaching features a radius-corner offset design. Instead of pushing against the weak apex tips of a hex nut, the socket’s flat surfaces channel all rotational force directly onto the wide center flats of the hardware. This flat-to-flat contact spreads stress evenly, preventing corner rounding.
Extended Deep-Well Stud Clearance: The deep-draw body structure provides ample internal depth to pass completely over long, protruding bolt studs, a frequent challenge on exhaust manifolds, suspension hangers, and threaded rod linkages. This allows the socket teeth to seat fully on the nut for a safe, non-slip turn.
Fluid-Repellent Chrome Armour: The drop-forged tool body features a non-porous mirror-chrome finish. Workshop grease, oil, and brake fluids cannot stain or corrode the steel core, allowing the entire tool to be wiped clean with a single pass of a shop rag.
