2302M/A-¼” Drive Deep Hand Socket (Manual) 12 Point
2302M/A: ¼” Drive 12-Point Deep Hand Socket (Manual) with An-Lock Drive®
- ¼” Dr. Deep Hand Socket 12 PT.
- Douilles 12 pans
- 12 kątowy długi rękaw
- 12-Winkel-Langarm
- Manga larga de 12 ángulos
- بكسات(مَقْابِس) – 12 ضلع.
- แขนยาว 12 มุม
- DIN 3120- ISO 1174
- DIN 3124- ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動長套筒 公制/英制 -十二角
- An-Lock Drive® (Superb Torque)

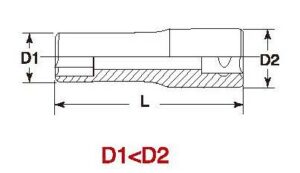

| 2302M (mm) | 2302A (inch) | D1 mm | D2 mm | L mm |  g |  pcs |
|---|---|---|---|---|---|---|
| 4.0 | 6.8 | 11.8 | 50 | 19 | 20 | |
| ⁵ᐟ₃₂ | 7.0 | 11.8 | 50 | 20 | 20 | |
| 4.5 | 7.4 | 11.8 | 50 | 19 | 20 | |
| ³ᐟ₁₆ | 7.9 | 11.8 | 50 | 20 | 20 | |
| 5 | 8.0 | 11.8 | 50 | 19 | 20 | |
| 5.5 | 8.7 | 11.8 | 50 | 19 | 20 | |
| ⁷ᐟ₃₂ | 8.9 | 11.8 | 50 | 20 | 20 | |
| 6 | 9.2 | 11.8 | 50 | 22 | 20 | |
| ¼ | 10.0 | 11.8 | 50 | 20 | 20 | |
| 7 | 10.8 | 11.8 | 50 | 23 | 20 | |
| ⁹ᐟ₃₂ | 11.0 | 11.8 | 50 | 23 | 20 | |
| 8 | ⁵ᐟ₁₆ | 11.4 | 12.0 | 50 | 23 | 20 |
| 9 | ¹¹ᐟ₃₂ | 13.0 | 12.2 | 50 | 26 | 20 |
| 10 | ⅜ | 14.5 | 13.0 | 50 | 30 | 20 |
| 11 | ⁷ᐟ₁₆ | 16.0 | 14.2 | 50 | 35 | 20 |
| ¹⁵ᐟ₃₂ | 16.8 | 15.5 | 50 | 41 | 20 | |
| 12 | 17.0 | 15.5 | 50 | 43 | 20 | |
| 13 | ½ | 18.0 | 16.5 | 50 | 45 | 20 |
| 14 | ¹⁹ᐟ₁₆ | 19.5 | 17.5 | 50 | 58 | 20 |
| 15 | 20.9 | 20.9 | 50 | 58 | 20 |
Feature
1/4″ Deep Manual Optimization
Q: What is the main structural benefit of the An-Lock Drive® system on small 1/4″ drive fasteners?
A: Small fasteners (4mm to 15mm) feature tiny hex heads that round off instantly under uneven corner pressure. Standard sockets apply force right on the weak tips of the nut. Hans An-Lock Drive® redirects all turning forces onto the wide center flats of the fastener, allowing technicians to safely break loose stubborn or over-torqued micro-bolts without stripping them.
