1994 Heavy-Duty Pipe Wrench | Professional Industrial Cast

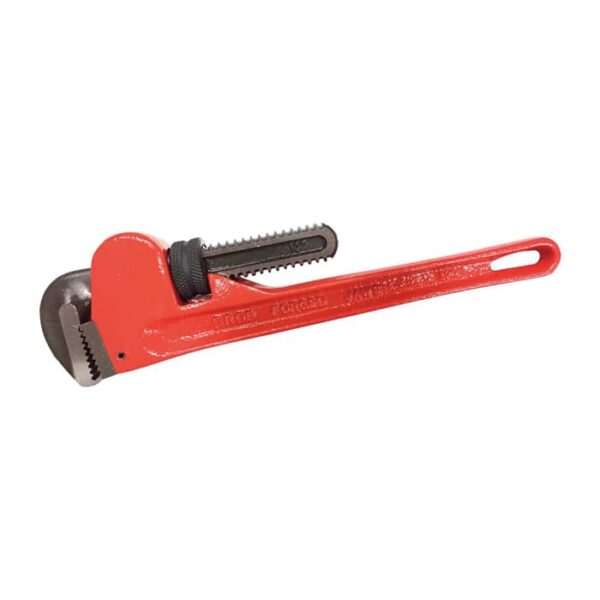

1994 Series: Professional Heavy-Duty Straight Pipe Wrench
- Clé serre-tube modèle américain
- Amerykański klucz do rur
- Amerikanische Rohrzange
- Llaves para pipa modelo americano
- مفتاح ربط الأنبوب الأمريكي
- ประแจท่อแบบอเมริกัน
- 美式水管扳手
- 1994-8/ -10/ -12/ -14/ -18/ -24/ -36/ -48
- Steel Iron Body
- Handle Introduction- (Plier, Torque Wrench/ Wrench)
- Pliers and their Uses (D-W)
Pipe Wrench (Model 1994 Series) is an industrial-strength fastening tool designed for the most demanding plumbing and mechanical applications. Manufactured by Hans Tools, the Pipe Wrench utilizes a traditional straight-pattern design optimized for maximum leverage on heavy-walled piping. Forged from high-tensile materials and featuring precision-ground teeth, this tool is a critical asset for facility managers, utility contractors, and mechanical engineers who require absolute reliability when servicing high-torque industrial fittings.
| 1994 | MAX OPEN (gas) | L mm | CAPACITY mm |  g |  pcs |
|---|---|---|---|---|---|
| 1994-08 | 1" | 200 | 34 | 470 | 1 |
| 1994-10 | 1-1/2" | 250 | 49 | 670 | 1 |
| 1994-12 | 2" | 300 | 60 | 1000 | 1 |
| 1994-14 | 2" | 350 | 60 | 1250 | 1 |
| 1994-18 | 2-1/2" | 450 | 76 | 2000 | 1 |
| 1994-24 | 3" | 600 | 90 | 3660 | 1 |
| 1994-36 | 5" | 900 | 140 | 8000 | 1 |
| 1994-48 | 6" | 1200 | 15000 | 1 |
Feature
Floating Hook Jaw & I-Beam Structural Integrity
The 1994 Pipe Wrench is built for mission-critical industrial durability:
- Full-Floating Forged Hook Jaw: The primary advantage of this Pipe Wrench is the floating jaw mechanism. This allows for rapid “ratcheting” action and ensures that the jaws grip the pipe at three distinct points, preventing the crushing of thin-walled conduit while providing maximum “bite” on hardened iron.
- Self-Cleaning Adjustment Threads: Designed for harsh environments, the adjustment nut features open-frame threads that automatically eject mud, rust, and debris. This ensures the wrench remains adjustable even in trench-work or oily refinery conditions.
- High-Strength I-Beam Handle: The handle is cast with a reinforced I-beam profile, providing an exceptional strength-to-weight ratio. This allows technicians to apply massive manual force or use “cheater bars” (where safety protocols allow) without risking handle deformation.
B2B Procurement & Infrastructure MRO ROI
- Essential for Mining & Energy Sectors: The Pipe Wrench is a staple for Drilling Crews and Plant Maintenance Teams who manage large-diameter pipe schedules and high-pressure valves.
- Induction-Hardened Alloy Steel Teeth: Both the hook and heel jaws feature teeth that are heat-treated to a high Rockwell hardness. This ensures long-term edge retention, preventing the “rounding” of jaws that leads to dangerous tool slippage.
- Standardized Sizing for Tool Cribs: Available in a full range of lengths, the 1994 series allows procurement officers to standardize their heavy-duty tool inventory with a single, proven model for all pipe diameters.
