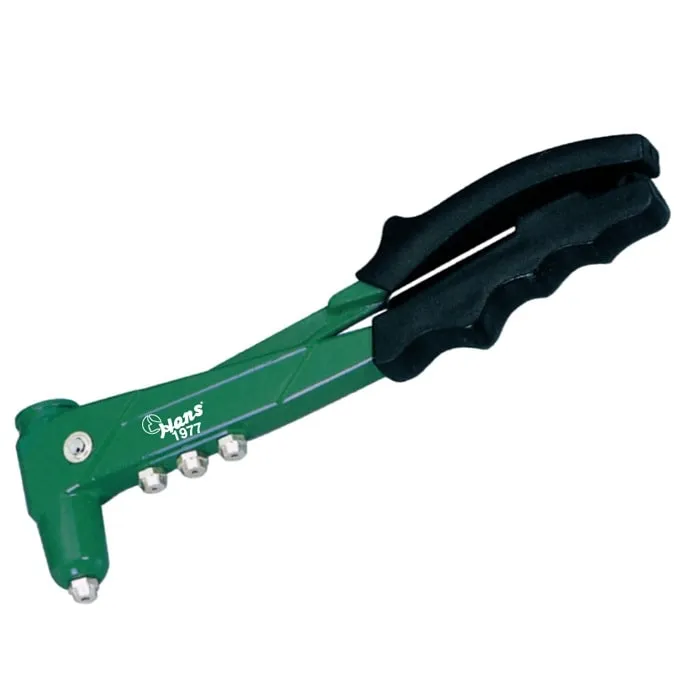

1977 Heavy Duty Hand Riveter – 2.4–4.8 mm Riveting Tool

Material Engineering & Structural Truth

• The Physics of Long-Arm Mechanical Leverage: Pulling structural stainless steel blind rivets takes strong, steady hand power. The long handles help multiply the user’s squeeze, while the compact hinge area concentrates that force into the pulling jaws. In simple terms, the tool turns ordinary hand pressure into stronger rivet-pulling force.

Simple Leverage Rule
Longer Handles + Shorter Pivot Distance = More Pulling Power
The tool gives the user more rivet-setting force without requiring the same amount of extra hand effort.

The handle length is the distance from the user’s grip to the hinge, and the pivot distance is the short internal distance around the hinge that drives the pulling jaws. When the handle is long and the pivot distance is short, the tool creates stronger pulling force from the same hand squeeze. This helps the 1977 series secure thick joints more easily and reduces hand fatigue during repeated rivet installation.

• Hardened Monoblock Steel Construction: The main chassis frame is hammer-forged from premium structural steel. This rigid backbone completely eliminates the handle flex common to light duty alternatives, ensuring that 100% of your squeeze force transfers straight to the internal hardened steel jaw pulling collet.
• Industrial Black Wrinkle Protective Armor: The entire tool frame is finished with a non-porous, texturized black wrinkle powder coating. This finish shrugs off impact scrapes, workshop grease, and chemical solvents while providing a secure gripping surface when setting up alignment angles.
• Concentric Multi-Jaw Chuck Grip: The internal pull capsule houses a heavy-duty, multi-jaw clamping mechanism. This geometry grabs the rivet mandrel uniformly on all sides, delivering a clean, vertical pull that prevents bent mandrels or jammed tool barrels.

4. Technical FAQ: Blind Rivet System Optimization

Q: Why select the 1977 Heavy Duty Hand Riveter for stainless steel fasteners over standard compact hand riveters?

A: True frame rigidity and high torque leverage. Standard compact hand riveters feature short handles and cast aluminum shells that can crack or bow when trying to pull high-tensile stainless steel rivets. The Hans 1977 combines a solid steel construction with an extended arm profile, giving you the immense pulling force required to snap tough stainless mandrels cleanly without twisting the tool body out of true alignment.

Q: What routine servicing prevents the internal jaw capsule from slipping or jamming on spent rivet mandrels?

A: Small fragments of metal shaving and friction dust from rivet mandrels can naturally settle inside the pulling chamber over thousands of cycles. Periodically unscrew the outer head sleeve cylinder, remove the internal pulling jaws, and clear away any trapped metal grit with a fine wire brush. Apply a single drop of clean machine lubricant to the external sliding taper surfaces of the jaws to keep the extraction cycle smooth and jam-free.
