19675M-2 Threaded Nut Insert Tool Kit | Dual Riveter
19675M-2 Rivet & Nut Insert Tool Set | Dual-Function Riveter with M3–M6 Threaded Mandrels and Blind Rivets
- Juego de remachadora y tuercas roscadas 19675M-2 – M3 a M6 + remaches ciegos
- Kit de riveteuse et d’écrous filetés 19675M-2 – M3 à M6 + rivets aveugles
- Kombi-Riveter und Gewindemuttern-Set 19675M-2 – M3 bis M6 + Blindnieten
- Zestaw nitownicy i nakrętek gwintowanych 19675M-2 – M3 do M6 + nity
- طقم أداة التثبيت بالصواميل والمسامير 19675M-2 – من M3 إلى M6 + برشام أعمى
- ชุดเครื่องมือรีเวทและน็อตเกลียว 19675M-2 – M3 ถึง M6 + รีเวทตาบอด
- Bộ dụng cụ đinh tán & ốc ren 19675M-2 – M3 đến M6 + đinh tán mù
19675M-2 threaded nut insert tool kit is a dual-function hand riveter designed to set threaded nut inserts (rivet nuts) and blind rivets for sheet-metal repair, automotive service, and light fabrication. One tool covers two fastening tasks, helping workshops reduce tool switching and improve job throughput.
Feature
How to Use (Workshop SOP)
Rivet Nut Mode
- Install correct mandrel (M3–M6)
- Thread rivet nut onto mandrel
- Insert into pre-drilled hole
- Squeeze handles until fully set
- Reverse to release mandrel
Blind Rivet Mode
- Install correct nosepiece (2.4–4.8mm)
- Insert rivet into hole and load stem
- Pull until stem breaks cleanly
H2：FAQ
Q1: Can one tool handle both rivet nuts and blind rivets?
Yes. 19675M-2 is designed as a dual-function system with interchangeable mandrels and nosepieces.
Q2: What materials is it suitable for?
Best for thin sheet metal and light-gauge assemblies commonly found in repair and fabrication work.
Q3: How do I choose the correct size?
Match the mandrel to the rivet nut thread size (M3–M6) and match the nosepiece to the blind rivet diameter (2.4–4.8mm).

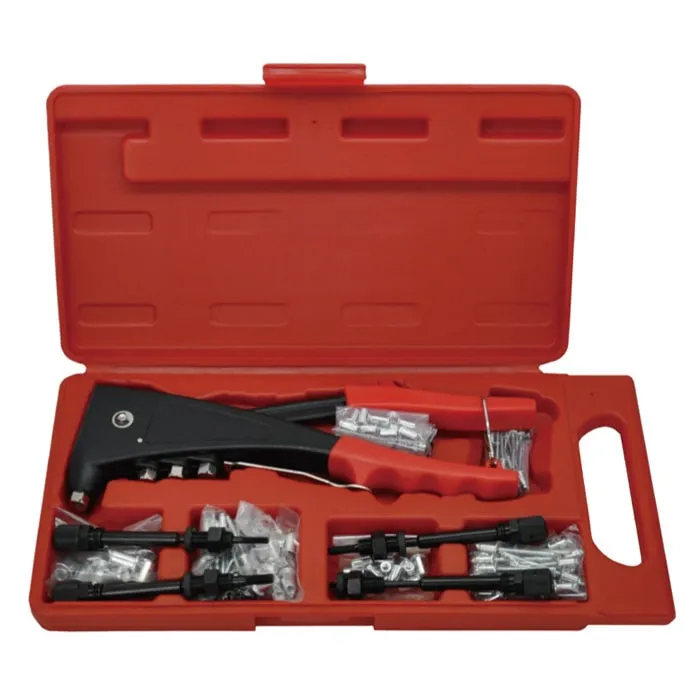

📦 Kit Contents:
- 1 x Dual-action hand riveter

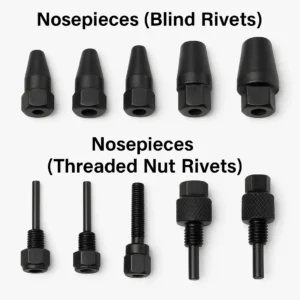

- 4 x Nosepieces for blind rivets:
• 2.4mm (³ᐟ₃₂”), 3.2mm (⅛”), 4.0mm (⁵ᐟ₃₂”), 4.8mm (³ᐟ₁₆”) - 80 x Blind rivets (4 sizes x 20 pcs each)
- 4 x Nut mandrels: M3, M4, M5, M6
- 40 x Threaded insert nuts (4 sizes x 10 pcs each)
- Durable molded case with compartments
💡 Features:
- Dual-function hand tool for nut inserts and blind riveting
- Industrial-strength steel jaw system
- Includes 4 nosepieces + 4 nut insert mandrels
- Compact blow-molded case for easy storage
- Anti-slip grip for better torque transfer
- Quick-change mandrel system
- Ideal for repair garages, electrical box installation, and thin-metal fabrication
| 19675M | |||
|---|---|---|---|
| Item/Details | 4 NOSE PICE | L mm |  |
| 1978 Heavy Duty Hand Riveter for 2.4–4.8 mm Blind Rivets1979 | 2.4mm(³ᐟ₃₂) 3.2mm(⅛) 4.0mm(⁵ᐟ₃₂) 4.8mm(³ᐟ₁₆) | 255 | 510 |
| Nut Rods (4 PCs) | M5, M6, M8, M10 | ||
| Thread Nuts | M5, M6, M8, M10 | Each Nut in 20 PCs | |
| Nose Rivets | 2.4mm(³ᐟ₃₂), 3.2mm(⅛) ,4.0mm(⁵ᐟ₃₂), 4.8mm(³ᐟ₁₆) | ||
| Threads Nuts | 2.4mm(³ᐟ₃₂), 3.2mm(⅛), 4.0mm(⁵ᐟ₃₂), 4.8mm(³ᐟ₁₆) | ||
