1861 Series represents a safety-critical solution for live-line industrial electrical wiring, diagnostic switchgear troubleshooting, and high-density harness routing—an elite Insulated High-Leverage Diagonal Plier functioning as a heavy-duty Diagonal Cutting Nipper. Explicitly engineered to deliver the absolute “Mechanical Truth” when working inside energized control cabinets, hybrid vehicle battery grids, and telecom distribution blocks, this tool guarantees total user isolation up to 1000V AC or 1500V DC.

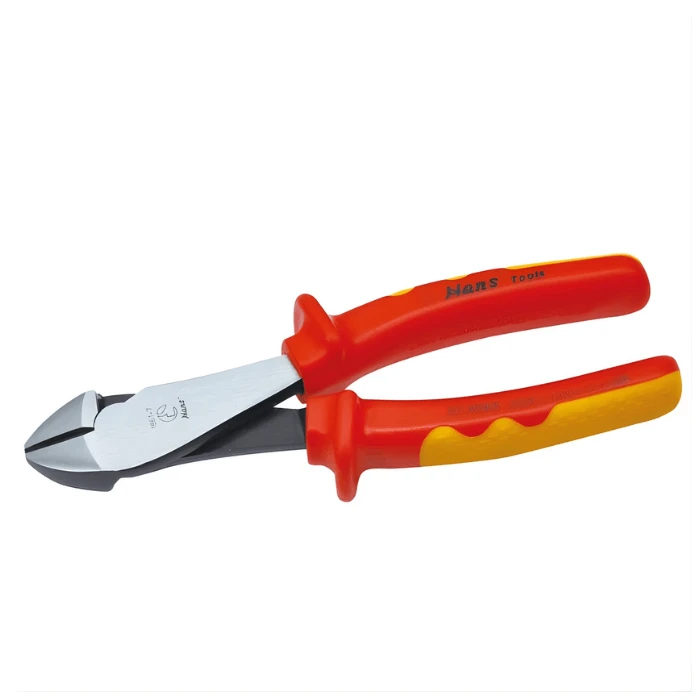

1861 Insulated High-Leverage Diagonal Plier
| 1861 | L mm/inch | L3 mm | W3 mm | T1 mm |  g |  Cutting mm |  pcs |
|---|---|---|---|---|---|---|---|
| 1861-07 | 180/ 7" | 21.0 | 28.6 | 12.0 | 190 | 1.8  | 6 |
| 1861-08 | 200/ 8" | 23.0 | 28.6 | 10.4 | 340 | 2.0 | 6 |
Feature
Material Engineering & Structural Truth
- The Ergonomics of High-Leverage Joint Design: The mechanical advantage of the 1861 series centers on moving the primary rivet pivot physically closer to the induction-hardened cutting jaws. By shortening the distance between the hinge pivot and the cutting blades, the mechanical leverage ratio is greatly increased compared to traditional standard cutters. This allows technicians to cleanly snip through thick electrical conductors with minimal hand fatigue during long shifts.
- IEC 60900 Dual-Component Insulation: The handles feature an advanced multi-layer injection molding process that chemically fuses the safety grip directly to the drop-forged tool steel core. Built-in wide safety flanges function as an physical slip guard, preventing your fingers from accidentally sliding forward onto the exposed, conductive steel cutter head.
- Precision Induction-Hardened Shearing Blades: The cutting edge profile is precision-ground and induction-tempered to handle rigorous everyday cutting tasks. This guarantees long-term edge sharpness, delivering clean flush-cuts through copper leads, soft iron wire, and heavy cable ties without tearing or dulling.
- Polished Low-Profile Head Geometry: Designed with a slim, polished jaw face, this plier slips easily into tight electrical junction boxes, dense wire looms, and congested sub-panels where bulky tools are blocked.
- Technical FAQ: Insulated High-Leverage Diagonal Plier Optimization
Q: What is the main structural advantage of a high-leverage diagonal cutter over a standard joint side cutter?
A: A significant reduction in manual cutting effort. Standard cutters feature center-placed pivots that split the tool’s leverage equally, often requiring a two-handed grip to cut through heavy-gauge copper. The Hans 1861 relies on an eccentric, forward-positioned rivet joint that optimizes tool leverage. This channels hand force straight to the blades, letting you trim thick wires cleanly with a single, controlled hand squeeze.
Q: How frequently must an insulated hand tool be inspected to verify its safety compliance?
A: Before every live-line deployment. Technicians should visually check the entire handle surface for any signs of deep cuts, chemical melting, puncture holes, or handle separation. Because safety insulation acts as your primary barrier against electrical shock, if any part of the inner handle layer or core steel shows through the outer protective cover, remove the tool from active live service immediately.
