1838B Insulated Bent Nose Plier | 1000V VDE Certified

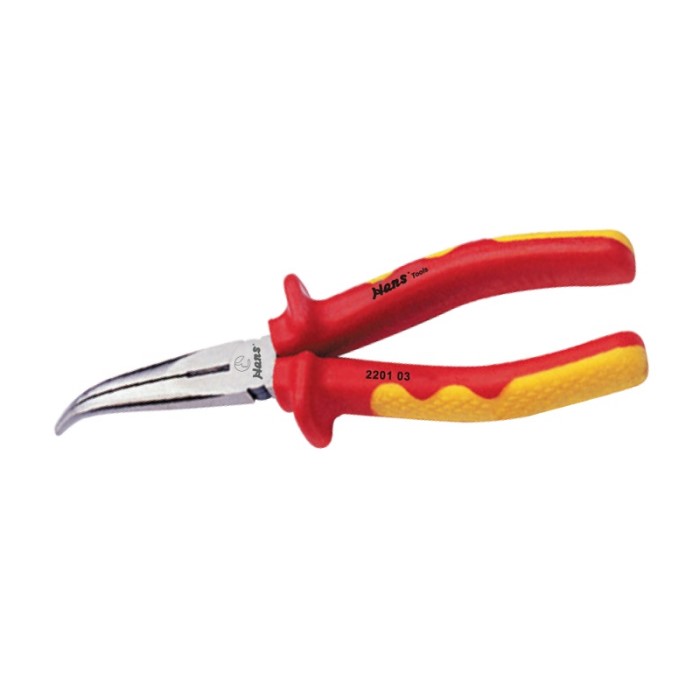

1839-6 / 1839-8 Insulated Bent Nose Plier – 6″ & 8″
- 1839-6 / 1839-8 Insulated Bent Nose Plier (6″ / 8″)
- 1839-6／1839-8 絕緣彎嘴鉗（6″／8″）
- 1839-6／1839-8 绝缘弯嘴钳（6″／8″）
- 1839-6 / 1839-8 Alicate Punta Curva Aislado (6″ / 8″)
- 1839-6 / 1839-8 Isolierte Spitzzange Gebogen (6″ / 8″)
- 1839-6 / 1839-8 Pince Bec Coudé Isolée (6″ / 8″)
- 1839-6 / 1839-8 كماشة أنف منحنٍ معزولة (6 و8 بوصات)
- 1839-6 / 1839-8 คีมปากงอฉนวน 6″ & 8″
- VDE 1000V
- DIN – ISO 5745/ EN 60900
- Insulated Tools in Safety concern
Insulated Bent Nose Plier (Model 1838B Series) is a high-precision safety tool designed for complex electrical wiring and maintenance. Manufactured by Hans Tools, the Insulated Bent Nose Plier combines a 45-degree angled nose with a dual-component insulation system tested to withstand 1,000V AC. This specific geometry is critical for electricians and EV technicians who need to grip, pull, or cut wires in “blind” spots within high-voltage enclosures where a standard straight plier would obstruct the field of vision or fail to clear structural obstacles.
| 1839 | L mm/inch | W3 mm | W4 mm | T1 mm |  g |  Cutting mm |  pcs |
|---|---|---|---|---|---|---|---|
| 6 | 160/ 6" | 16.2 | 3.2 | 8.6 | 110 | 1.6  | 6 |
| 8 | 200/ 8" | 17.2 | 5.0 | 9.2 | 160 | 1.6 | 6 |
Feature
- Bent slim tips for access around obstacles and inside panels
- Serrated jaws for firm hold on wire, terminals, and small parts
- Induction-hardened gripping faces for long life
- Insulated, non-slip handles for electrical environments
- Smooth pivot reduces hand fatigue in repetitive work
- Live circuits: use only if IEC/EN 60900-rated and undamaged; inspect before each use.
- Do not use on hardened wire unless tool is rated for cutting.
- Care: wipe clean; light oil on pivot; store away from solvents/UV.
