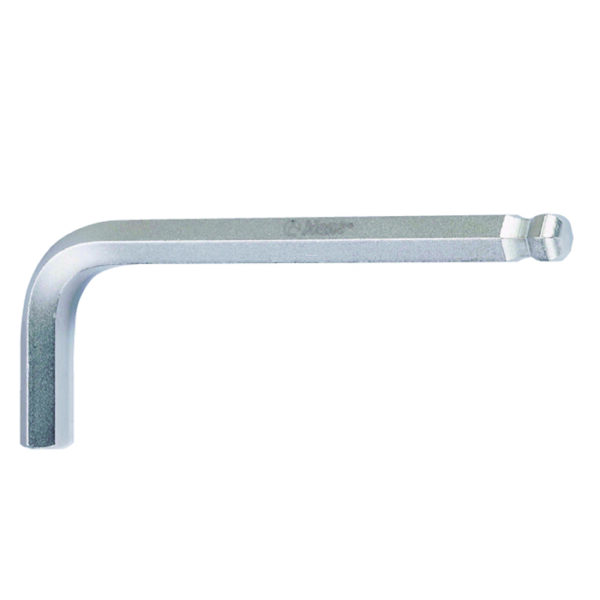

1774M/A Standard Ball Point Hex-Key Wrench | S2 Steel

SKU 1774M/A Categories Wrench/ Hex-Key Wrench, L-Shape Key Wrench, L-Shape Key Wrench- Individual Tags Ball Point, Hex-Key Wrench

SIZE mm	SIZE inch	ARM (L1)	ARM (L2)	g
1.3		12	40	0.6
1.5	¹ᐟ₁₆	14	45	0.9
2	⁵ᐟ₆₄	16	50	1.8
2.5	³ᐟ₃₂	18	56	3.2
	⁷ᐟ₆₄	19	59	4
3	⅛	20	63	5
3.5	⁹ᐟ₆₄	22	65	7
4	⁵ᐟ₃₂	25	70	10
4.5		26	75	14
5	³ᐟ₁₆	28	80	18
5.5	⁷ᐟ₃₂	30	85	24
6	¼	32	90	33
7	⁹ᐟ₃₂	34	95	43
8	⁵ᐟ₁₆	36	100	60
9		38	106	105
10	⅜	40	112	170
12	½	45	125
14	⁹ᐟ₁₆	56	140	265

Feature

Individual Tool Availability: This item is sold as a Single Piece (Individual), allowing for precise inventory management in industrial workshops and easy replacement of lost or worn-out key sizes.
S2 Silicon Alloy Metallurgy: The 1774 series is engineered with a high-carbon S2 steel blend. This provides a significantly higher torque threshold (HRC 58~62) than standard Chrome Vanadium wrenches, ensuring the hex edges stay sharp for a lifetime.
25° Ball Point Functionality: The long arm is equipped with a CNC-machined ball end. This enables a 25-degree tilt, allowing you to turn fasteners in narrow gaps where a standard hex wrench would hit the surrounding casing.
Standard Length Profile: The “Standard” arm length is specifically designed to provide maximum tactile feel. It reduces the “spring/flex” found in extra-long wrenches, giving the technician total control over the torque applied to delicate fasteners.
Zero-Tolerance Fit: Every individual wrench is machined to strict DIN/ISO tolerances to prevent “play” inside the fastener, effectively eliminating stripped bolt heads.
