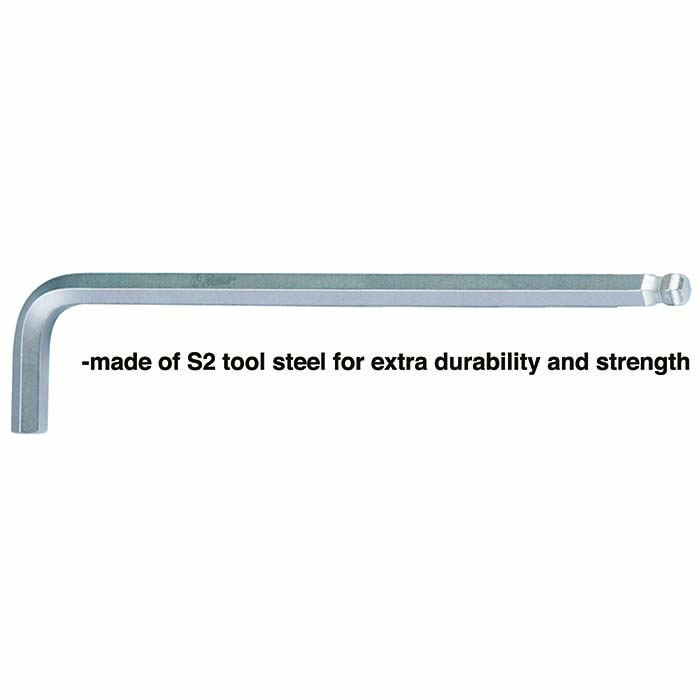

1772M/A Ball Point-Hex Key Wrench | Extra Long S2 Steel

SKU 1772M/A Categories Wrench/ Hex-Key Wrench, L-Shape Key Wrench, L-Shape Key Wrench- Individual Tags Ball Point, Hex-Key Wrench

SIZE mm	SIZE inch	ARM (L1)	ARM (L2)	g
1.5	¹ᐟ₁₆	14	90	1.5
2	⁵ᐟ₆₄	15	100	3
2.5	³ᐟ₃₂	18	112	5
3	⅛	20	126	8
4	⁵ᐟ₃₂	25	142	17.5
5	³ᐟ₁₆	28	160	31
5.5	⁷ᐟ₃₂	30	170	40
6	¼	32	180	51
7	⁹ᐟ₃₂	34	190	76
8	⁵ᐟ₁₆	36	200	101
9		38	210	175
10	⅜	40	224	175
12	½	45	250	293
14	⁹ᐟ₁₆	55	280	457

25° Ball Point Entry: The spherical hex tip is precision-milled to allow a 25-degree tilt. This allows the user to rotate fasteners in “blind” or cramped spaces without perfect vertical alignment.
S2 Tool Steel Metallurgy: Unlike standard Cr-V keys, Hans utilizes S2 Steel (hardened to HRC 58-62). This provides the extreme hardness required to prevent “rounding” of the hex tips under high-torque manual loads.
Extra-Long Arm Leverage: The increased L2 (Long Arm) length provides a superior torque-to-effort ratio, allowing for the easy loosening of high-tension industrial bolts.
Precision Chamfered Ends: The short-arm hex end is precision-chamfered to ensure an easy, burr-free fit into the fastener head.
Dual Standard Availability:
- 1772M: Full metric range (1.5mm to 19mm).
- 1772A: Full SAE/Imperial range (1/16″ to 3/4″).

What is the benefit of the Ball Point end? It allows you to turn a screw even if you cannot get the wrench perfectly straight. You can tilt the wrench up to 25° and still maintain a secure grip.
Why is S2 steel better for hex keys? Hex keys are thin; standard steel can twist and “snap back.” S2 steel is stiffer and harder, ensuring the energy you put into the handle goes directly into the bolt.
Is this the longest version available? Yes, the 1772 series is the “Extra-Long Arm” version, providing more reach and torque than the standard 1672 series.
Are these sold as sets or individuals? Hans provides these as Individual pieces for targeted replacement, but they are also available in curated 17729M (Metric) or 17729A (SAE) 9-piece sets.
