16066MV Insulated Single Ring Wrench Set | 75° Offset 1000V

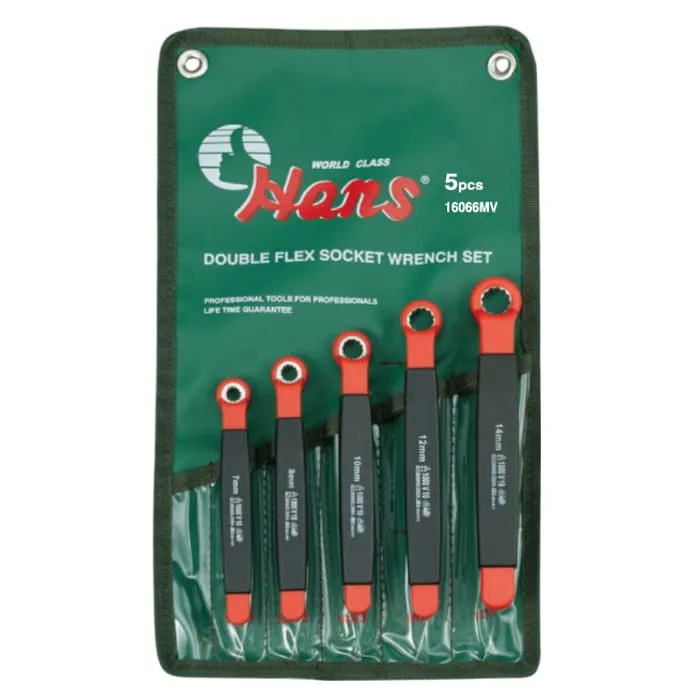

16066MV Series: 5-Piece 75° Offset Insulated Single Ring Wrench Set (1000V)
- Insulated Single Ring Wrench Set 75° – 5 PCs
- Jeu de clés polygonales isolées 75° – 5 pièces
- Juego de llaves de estrella aisladas 75° – 5 piezas
- Satz isolierter Ringschlüssel 75° – 5-tlg.
- Zestaw izolowanych kluczy oczkowych 75° – 5 szt.
- طقم مفاتيح حلقية معزولة بزاوية 75° – 5 قطع
- ชุดประแจแหวนแบบฉนวน 75° – 5 ชิ้น
- Jogo de chaves estrela isoladas 75° – 5 peças
- Set di chiavi ad anello isolate 75° – 5 pezzi
- Geïsoleerde ringsleutelset 75° – 5 stuks
- Набор изолированных накидных ключей 75° – 5 шт.
- 絶縁リングレンチセット（75°）– 5本セット
- 절연 링 렌치 세트 75° – 5개입
- 絕緣75度單梅花扳手組 – 5件組
- 绝缘75度单梅花扳手套装 – 5件套
- Szigetelt csillagkulcs készlet 75° – 5 darab
- Bộ cờ lê vòng cách điện 75° – 5 chiếc
- İzole yıldız anahtar seti 75° – 5 parça
- VDE 1000V
- Wrench all we can support

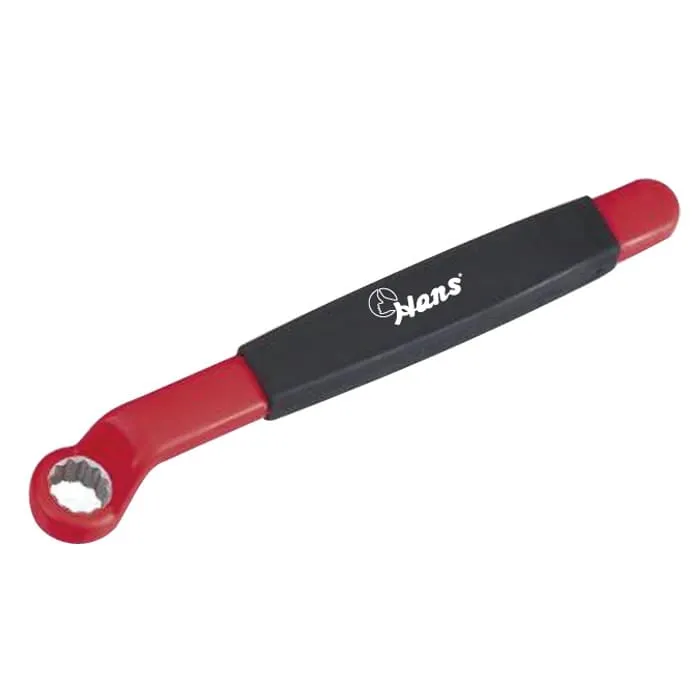

Insulated Single Ring Wrench Set (Model 16066MV) is a specialized safety toolkit engineered for precision fastening in high-voltage environments. Forged by Hans Tools and fully VDE and GS certified, the Insulated Single Ring Wrench Set features a dramatic 75° deep-offset profile. This geometry is specifically designed to provide clearance over obstructions, allowing electrical technicians to access recessed busbars and battery terminals while maintaining a 1000V safety barrier. Each tool is manufactured with premium insulation that meets the rigorous IEC 60900 international standard.

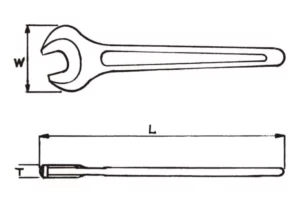

| 1506MV IEC VDE 1000V | W (mm) | T (mm) | T1 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 7 | 18.6 | 9.6 | 6.8 | 146.5 | 52 | 12 |
| 8 | 19.8 | 10.3 | 7.6 | 155.8 | 62 | 12 |
| 10 | 21.1 | 10.4 | 7.8 | 166.5 | 73 | 12 |
| 12 | 22.5 | 10.4 | 8.3 | 187.5 | 90 | 12 |
| 14 | 26.5 | 11.2 | 9.7 | 198.5 | 135 | 12 |
Feature
75° Deep-Offset & 1000V VDE Safety Compliance
The 16066MV Insulated Single Ring Wrench Set is built for mission-critical electrical maintenance:
- 75-Degree Safety Clearance: The significant offset of the Insulated Single Ring Wrench Set protects the technician’s hands by lifting them away from the work surface. This is essential when working in cramped electrical cabinets or EV battery trays where vertical clearance is limited.
- VDE / IEC 60900 Certified: Every wrench in the Insulated Single Ring Wrench Set is tested to 10,000V to ensure a safe working rating of 1000V AC / 1500V DC. The insulation is impact-resistant and flame-retardant, ensuring durability in harsh industrial conditions.
- 12-Point (Bi-Hex) Precision: The ring end of the Insulated Single Ring Wrench Set features a precision-machined 12-point profile. This allows for a secure grip on fasteners with a 30° engagement arc, ideal for tight-access high-voltage junctions.
B2B Procurement for EV & Industrial Power
- Essential for EV Service Centers: The Insulated Single Ring Wrench Set is a mandatory asset for workshops performing diagnostics and repairs on hybrid and electric vehicle powertrains.
- Dual-Layer Safety Indication: The insulation on the Insulated Single Ring Wrench Set utilizes a dual-color system. If the outer layer is compromised, the inner color becomes visible, signaling an immediate need for tool replacement to maintain safety protocols.
- 5S Organized Storage: This 5-piece set covers the most essential industrial metric sizes, provided in a format that supports 5S Lean Management and tool accountability in high-stakes environments
