1550MV Insulated Single Open-End Wrench | VDE 1000V Certified
1550MV Series: 1000V Insulated Single Open-End Wrench
- Insulated Single Open-End Wrench
- Clé plate isolée simple
- Llave fija aislada individual
- Isolierter Einmaulschlüssel
- Izolowany klucz płaski pojedynczy
- مفتاح ذو فتحة واحدة معزول
- ประแจปากตายแบบฉนวน (ปากเดียว)
- Chave fixa isolada (única)
- Chiave isolata a forchetta singola
- Geïsoleerde enkele steeksleutel
- Изолированный одинарный рожковый ключ
- 絶縁シングルオープンエンドレンチ
- 절연 싱글 오픈 렌치
- 單頭絕緣開口扳手
- 单头绝缘开口扳手
- Szigetelt, egyoldalas villáskulcs
- Cờ lê mở cách điện đơn
- İzole tek ağızlı anahtar
- VDE 1000V
- Wrench all we can support

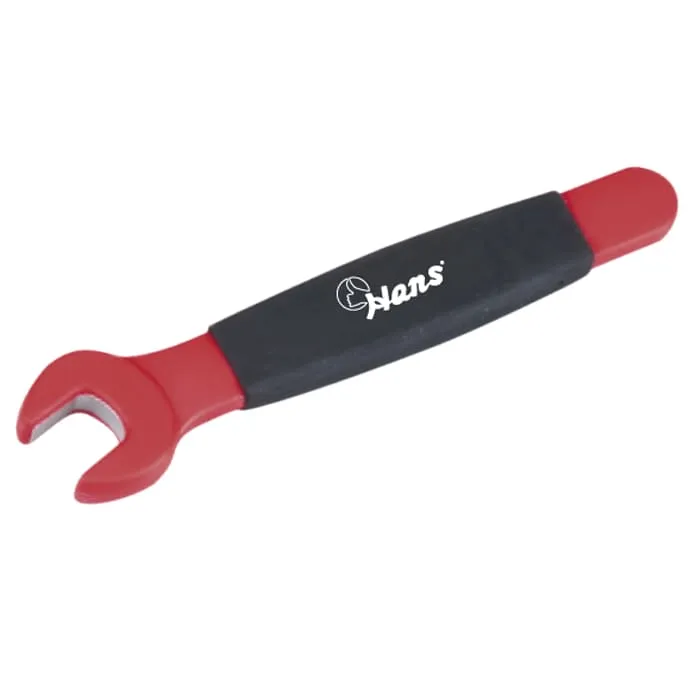

1550MV is an industrial-grade Insulated Single Open-End Wrench engineered for high-voltage electrical installations, hybrid/EV battery maintenance, and power distribution MRO. Certified to the rigorous VDE 1000V and IEC 60900 international standards, this tool provides a critical dielectric barrier for technicians working on or near live components. Combining high-tensile structural integrity with advanced insulation technology, the 1550MV series is the professional standard for safety-critical electrical environments.
| 1550MV IEC VDE 1000V | W (mm) | T (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|
| 7 | 17.7 | 10.0 | 89.0 | 20 | 12 |
| 8 | 20.5 | 11.6 | 98.5 | 26 | 12 |
| 10 | 25.0 | 13.6 | 113.7 | 40 | 12 |
| 12 | 29.0 | 15.3 | 133.9 | 51 | 12 |
| 14 | 33.8 | 18.1 | 155.0 | 96 | 12 |
Feature
- Can this wrench be used on live EV batteries? Yes, the 1550MV is VDE certified for use up to 1000V AC, making it suitable for electric vehicle maintenance and high-voltage battery systems.
- What does the “MV” stand for? The MV indicates a Metric size wrench that is Insulated (VDE).
- Is the insulation oil-resistant? Yes, the insulation material is designed to resist common workshop chemicals and oils, but it should be wiped clean after use to maintain the integrity of the grip and dielectric properties.
- How often should I inspect the insulation? You must inspect the 1550MV before every use. If you see any nicks, deep scratches, or cuts that reveal the inner layer of insulation, stop using the tool immediately.
