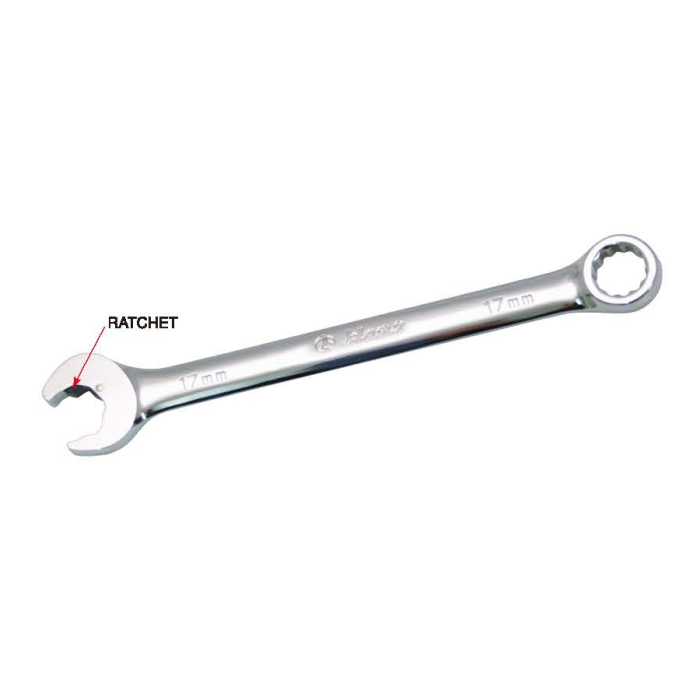

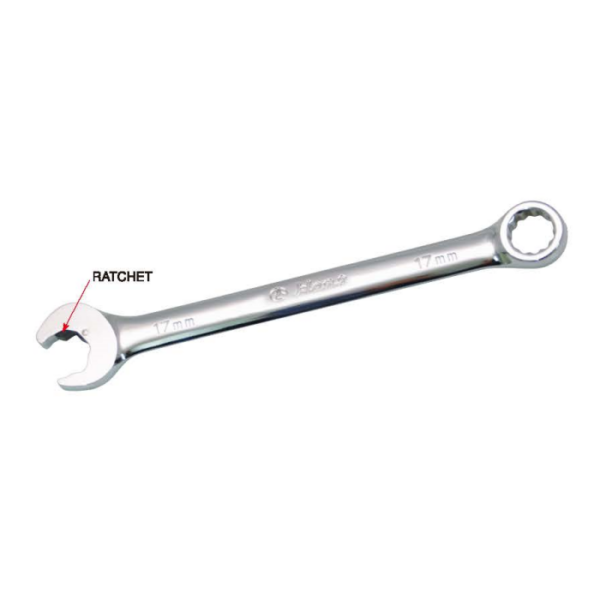

11642M / A Open-End Ratcheting Wrench – Slim Profile, Reversible Head, Metric & SAE
SKU
11642M
Categories Wrench/ Hex-Key Wrench, Wrench, Wrench- Individual
Tags Open-end, Ratchet Mechanism, Ring Wrench
11642M / A Open-End Ratcheting Wrench – Reversible, Slim-Head Design (Metric / SAE)
- Llave Combinada de Carraca de Cabeza Abierta – 11642M / A
- Clé Mixte Cliquet à Tête Ouverte – 11642M / A
- Offener Ringschlüssel mit Ratsche – 11642M / A
- Klucz Oczkowo-Płaski z Grzechotką – 11642M / A
- 11642M / A 開口棘輪雙用扳手(公制/英制)
- 11642M / A 开口棘轮双用扳手(公制/英制)
- مفتاح ربط حلقي مفتوح بمفتاح طقطقة – 11642M / A
- Chave de Catraca com Cabeça Aberta – 11642M / A
- Cờ-lê Vòng Miệng Có Cơ Cấu Ratchet – 11642M / A
- ประแจแหวนปลายเปิดพร้อมระบบเฟือง – รุ่น 11642M / A
- Wrench all we can support

11642M (mm) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) | ![]() g | ![]() pcs |
---|---|---|---|---|---|---|---|
8 | 17.8 | 13.5 | 5 | 5.8 | 136 | 39 | 12 |
10 | 21.1 | 16.8 | 5.8 | 6.9 | 161 | 61 | 12 |
11 | 25.5 | 18.2 | 6.6 | 7.4 | 168 | 63 | 12 |
12 | 26.5 | 19.5 | 7.5 | 7.9 | 174 | 82 | 12 |
13 | 28.5 | 20.6 | 7.9 | 8.4 | 180 | 103 | 12 |
14 | 32.2 | 22.6 | 8.5 | 8.9 | 193 | 125 | 12 |
15 | 32.8 | 23.9 | 8.5 | 9.7 | 200 | 143 | 12 |
16 | 34.8 | 25.8 | 9 | 10.4 | 207 | 171 | 12 |
17 | 37.7 | 27.5 | 9.5 | 10.9 | 227 | 194 | 12 |
18 | 38.8 | 28 | 9.8 | 11.2 | 239 | 221 | 12 |
19 | 41 | 30 | 9.8 | 12.2 | 250 | 247 | 12 |
21 | 45.9 | 31.3 | 9 | 13 | 253 | 212 | 12 |
22 | 48 | 34.6 | 9.4 | 13.9 | 263 | 260 | 12 |
24 | 52.2 | 37.4 | 10 | 14.4 | 285 | 291 | 12 |
25 | 54.5 | 38.9 | 10.2 | 16.1 | 295 | 373 | 12 |
27 | 58.5 | 41.8 | 11 | 17.1 | 317 | 433 | 12 |
11642A (inch) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) | ![]() g | ![]() pcs |
---|---|---|---|---|---|---|---|
(5/16) | 17.8 | 13.5 | 5 | 5.8 | 136 | 39 | 12 |
(3/8) | 21.1 | 16.8 | 5.8 | 6.9 | 161 | 61 | 12 |
(7/16) | 25.5 | 18.2 | 6.6 | 7.4 | 168 | 63 | 12 |
(1/2) | 28.5 | 20.6 | 7.9 | 8.4 | 180 | 103 | 12 |
(9/16) | 32.2 | 22.6 | 8.5 | 8.9 | 193 | 125 | 12 |
(5/8) | 34.8 | 25.8 | 9 | 10.4 | 207 | 171 | 12 |
(11/16) | 37.7 | 27.5 | 9.5 | 10.9 | 227 | 194 | 12 |
(3/4) | 41 | 30 | 9.8 | 12.2 | 250 | 247 | 12 |
(13/16) | 45.9 | 31.3 | 9 | 13 | 253 | 212 | 12 |
(7/8) | 48.1 | 34.6 | 9.4 | 13.9 | 263 | 260 | 12 |
(1") | 52.2 | 37.4 | 10 | 14.4 | 285 | 291 | 12 |
(1-1/16) | 54.5 | 38.9 | 10.2 | 16.1 | 295 | 373 | 12 |
58.5 | 41.8 | 11 | 17.1 | 317 | 433 | 12 |
Feature
**Key Features: **
- – Combines open-end wrench and ring-style ratcheting head in one tool
- – 72-teeth ratcheting mechanism with just 5° arc swing for confined spaces

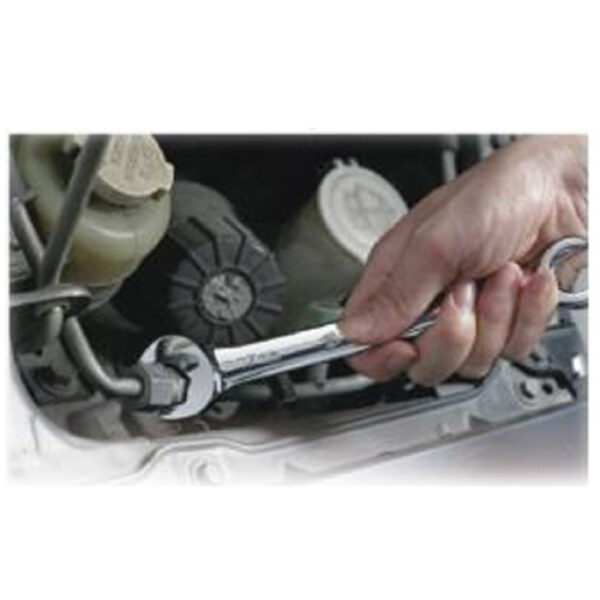

- – **Slim profile** head ideal for automotive, machinery, and maintenance work
- – Reversible ratchet direction via switch lever (no flipping tool)
- – Drop-forged from Cr-V steel and heat-treated for strength and durability
- – Chrome-plated anti-corrosion finish with laser-etched markings
- – Available in Metric (M) and SAE (A) series
- – Manufactured under DIN/ISO/ANSI standards in Taiwan
