0868SQ Insulated Square Screwdriver | VDE 1000V SNCMVH

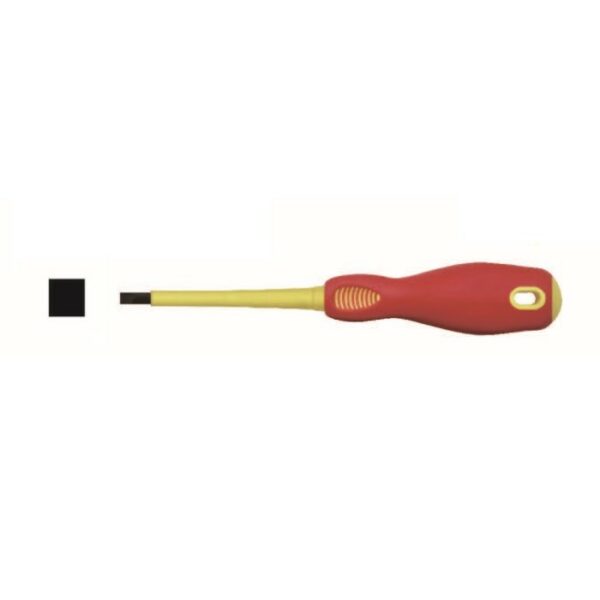

0868SQ: (Robertson) Insulated Square Screwdriver – VDE 1000V SNCMVH
- 0868SQ 絕緣正方形起子 (1000V VDE 安全認證 / 羅伯遜四角精密型)
- 0868SQ 绝缘正方形起子 (1000V VDE 安全认证 / 罗伯逊四角精密型)
- 0868SQ Destornillador Cuadrado Aislado (Seguridad VDE 1000V / Punta Robertson)
- 0868SQ Isolierter Innenvierkant-Schraubendreher (1000V VDE Zertifiziert / Robertson)
- 0868SQ Tournevis Carré Isolé (Certifié VDE 1000V / Tournevis Robertson)
- العربية: 0868SQ مفك مربع معزول (أمان VDE 1000V / مفك روبرتسون)
- 0868SQ Geïsoleerde Vierkant-Schraubendreher / Robertson Schroevendraaier (1000V VDE Gecertificeerd)
- فارسی: ۰۸۶۸SQ پیچگوشتی چهارسو مربعی عایق فشار قوی (امنیت 1000V VDE)
- 0868SQ Izolowany Wkrętak Kwadratowy (Bezpieczeństwo 1000V VDE / Robertson)
- 0868SQ Szigetelt Négyszögletű Csavarhúzó (1000V VDE Biztonság / Robertson)
- 0868SQ Изолированная отвертка под квадратный шлиц Robertson VDE 1000В
- 0868SQ Chave de Fenda Quadrada Isolada de Alta Alavancagem (Segurança VDE 1000V / Robertson)
0868SQ Insulated Square Screwdriver represents the professional standard for specialized, high-slip-resistance fastening within live electrical distributions and manufacturing frameworks. Purpose-built to deliver the absolute “Mechanical Truth” when servicing square-drive (Robertson) recess screws commonly found in commercial electrical panels, load centers, industrial switchgear, and electric vehicle (EV) charging infrastructure, this premium driver guarantees complete operator isolation up to 1000V AC or 1500V DC.
| 0868 | SHAFT LENGTH mm | OVERALL LENGTH mm |  g |  pcs |
|---|---|---|---|---|
| SQ1 | 150 | 265 | 113 | 12 |
| SQ2 | 150 | 265 | 113 | 12 |
| SQ3 | 150 | 265 | 113 | 12 |
Feature
Material Engineering & Structural Truth
Anti-Cam-Out Square Drive Geometry
The 4-point square profile tip features slight taper engineering that creates a tight, mechanical wedge fit inside the screw head recess. This geometry provides full surface-to-surface torque engagement along all four flat walls. This design allows technicians to transfer immense manual twisting force without needing to apply excessive inward pressure, preventing hand fatigue and eliminating the risk of a tool slipping out onto live equipment.
Monolithic Polymer Injection Shielding
The protective insulation sleeve is not a heat-shrink tube; it is a heavy-duty polymer layer injected directly over the engineered Chrome Vanadium (Cr-V) steel shaft. This bonding method forms a continuous, seamless surface from the handle base to the edge of the hex head, ensuring that chemical solvents, drop impacts, and environmental scraping will not loosen or compromise the tool’s dielectric safety core.
Ergonomic High-Torque Multi-Component Handle
The handle grip configuration maximizes surface friction against the human palm. By balancing soft rubber grip panels with highly resilient structural core plastics, the handle enables high manual twisting torque without hand slippage. A pronounced molded safety flange at the front of the handle serves as a physical stop, keeping the user’s hand safely separated from the shaft assembly.
Technical FAQ: Insulated Square Drive System Optimization
Q: Why are square-drive (Robertson) screwdrivers so widely adopted in industrial electrical panels compared to traditional Phillips profiles?
A: Torque efficiency and tool control. Phillips and slotted heads are notorious for slipping under heavy loads, which can deform the screw or cause an accidental slip. The square-drive recess features a deep square pocket layout that locks the Hans 0868SQ tip securely in place across all four axes. This absolute grip ensures that heavy wire terminals can be torqued precisely to exact engineering specifications without strip damage.
Q: What is the purpose of the black oxide or hardened tip treatment on the 0868SQ?
A: Slip-prevention and dimensional accuracy. Chrome plating on the very tip of a screwdriver can round off sharp structural corners and reduce frictional engagement. The Hans 0868SQ features a precision-machined, unplated tip with a specialized micro-surface treatment. This preserves exact sizing tolerances, ensuring a snug fit into fasteners over thousands of service cycles while offering great corrosion protection.
