1861 Insulated High-Leverage Diagonal Plier
1861 Insulated High-Leverage Diagonal Plier
- 1861 Insulated High-Leverage Diagonal Plier
- 1861 絕緣高倍力斜口鉗
- 1861 绝缘高倍力斜口钳
- 1861 Alicate Diagonal Aislado de Alta Palanca
- 1861 Isolierter Kraft-Seitenschneider
- 1861 Pince Coupante Diagonale Isolée Haute Levier
- 1861 كماشة قطع جانبية معزولة عالية الرافعة
- 1861 คีมตัดปากเฉียงฉนวน กำลังงัดสูง

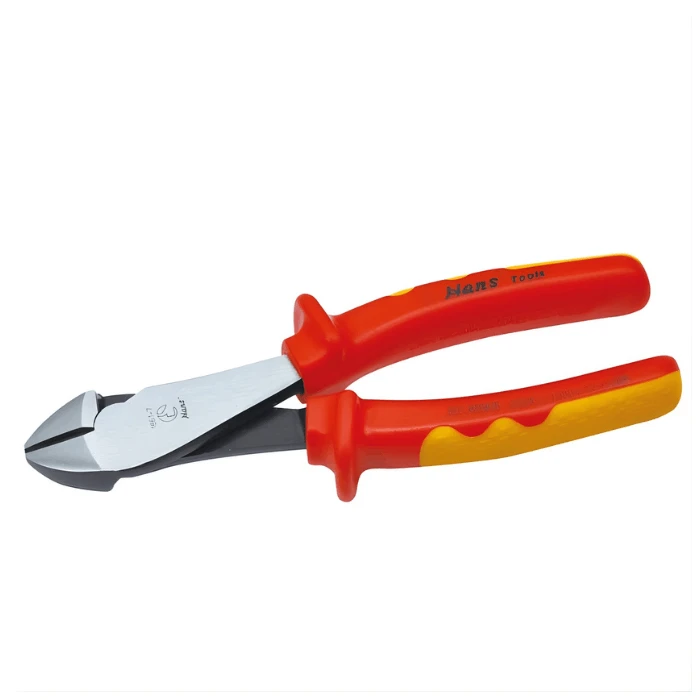

1861 is a pro-grade insulated side cutter with a high-leverage pivot that reduces hand force. The slim, polished head reaches tight bays; induction-hardened cutting edges give crisp cuts on copper/aluminum conductors, soft iron wire, and cable ties to rated capacity. Red/Yellow insulation is tested to industry live-work standards (IEC 60900*).

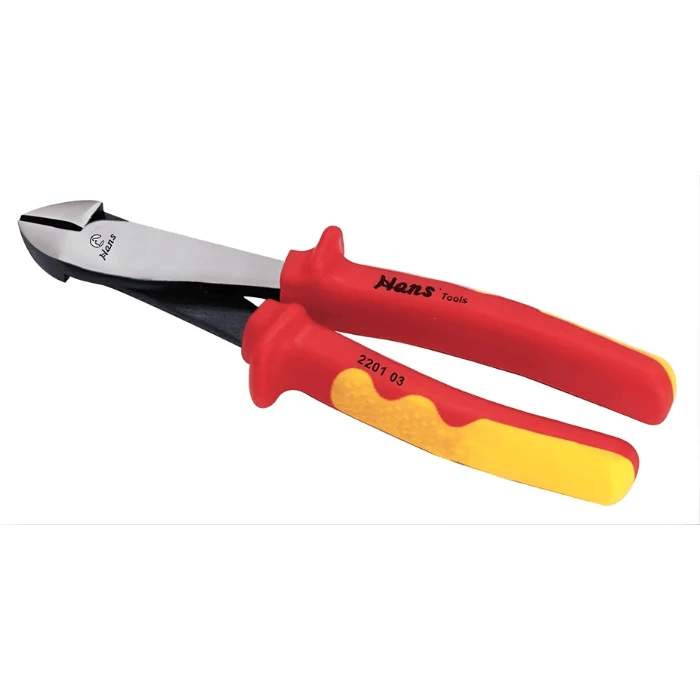

1861 Insulated High-Leverage Diagonal Plier
| 1861 | L mm/inch | L3 mm | W3 mm | T1 mm |  g |  Cutting mm |  pcs |
|---|---|---|---|---|---|---|---|
| 1861-07 | 180/ 7" | 21.0 | 28.6 | 12.0 | 190 | 1.8  | 6 |
| 1861-08 | 200/ 8" | 23.0 | 28.6 | 10.4 | 340 | 2.0 | 6 |
Feature
High-leverage joint for easier cutting, less fatigue
Induction-hardened edges; precision-ground for clean shearing
Slim head for panel and harness access
IEC 60900* insulated handles with safety flanges (1000 V AC / 1500 V DC—confirm print)
Alloy tool-steel body, corrosion-resistant finish; hand-tool rated
Where it wins
Switchgear & control panels: fast, clean conductor trimming
Harness/loom builds: smooth cable-tie flush cuts (no snag)
Field service vans: robust daily cutter with safety insulation
Pro tips
Use the heel of the jaw for larger conductors; the tip for precision ends.
For hard wire near the limit, make two staged snips to protect the bevel.
